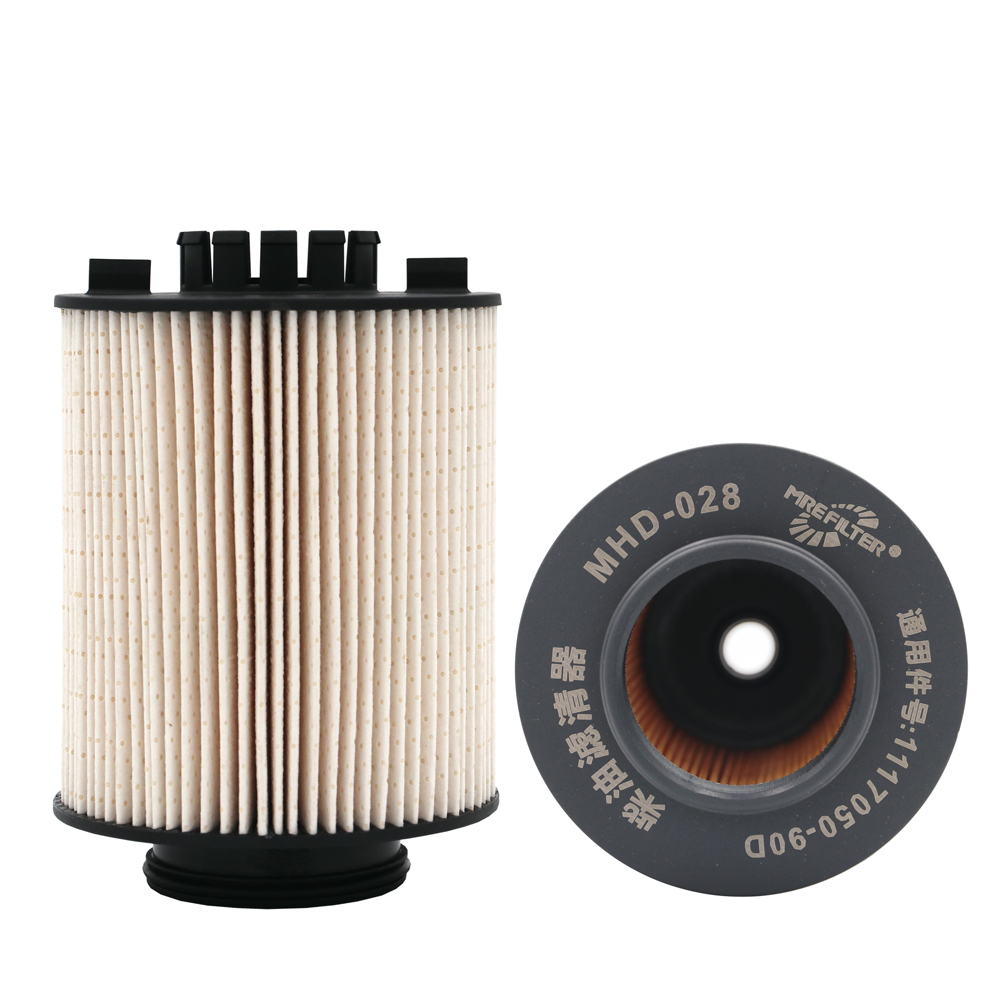

【Mrefilter】The selection technique of oil filter element

Qualified oil filter, must be in line with the original design of the engine cylinder pressure, oil temperature, flow, viscosity and the use of vehicles and other conditions, and to consider the comprehensive balance of filter element quality.

All flow type oil filter should be tested according to ISO4548 standard:
1 Pressure drop - flow characteristics test: the pressure drop - flow curve of the filter assembly is measured with the specified viscosity of the oil.
2 Characteristics of the filter element of the filter element test: to determine the pressure drop - bypass flow curve. When the filter pressure drop is low, to limit the amount of oil unfiltered, by-pass component in pressure drops below a specified open, allowing a small amount of oil; and when the filter is completely blocked, can bypass all traffic and does not exceed the prescribed pressure drop.
3 High pressure drop and high temperature characteristics test: used to test the oil filter in the work (especially in filter filter filter blockage) to withstand the high pressure drop. In addition, the filter is also affected by the oil temperature, should be simulated under the conditions of high temperature, the filter element to withstand high pressure drop, but not damaged capacity.
The 4 filter life and filtration efficiency test, determination of the filter was ordered by particle counting method, draw pressure during the test - the test of time or pressure - plus the weight of the gray curve to achieve the test time 75% bypass valve opening pressure, or contaminant weight, to indicate the filter life.
5. Cumulative efficiency test: the weight analysis method was used to determine the life time of the filter core to evaluate the test time or the amount of the pollutant when the test point was reached.
6. Hydraulic pulse fatigue test: test the oil filter in use, to pressure fluctuations by the engine cooling condition. When the pulsating hydraulic test requirements, 1000 cycles, to determine the filter housing, sealing ring, and the filter pressure fluctuations compression capability.
7. Resistance to vibration fatigue test: the installation of oil filter assembly, simulation engine plus mounting structure or surface caused by vibration frequency and amplitude of resonance, maintain the specified oil pressure, cycle 10 million times, to make sure no small traces of oil leakage, or fatigue damage performance.
